Aviation Windsock Chart Blue
Aviation Windsock Chart Blue Art.

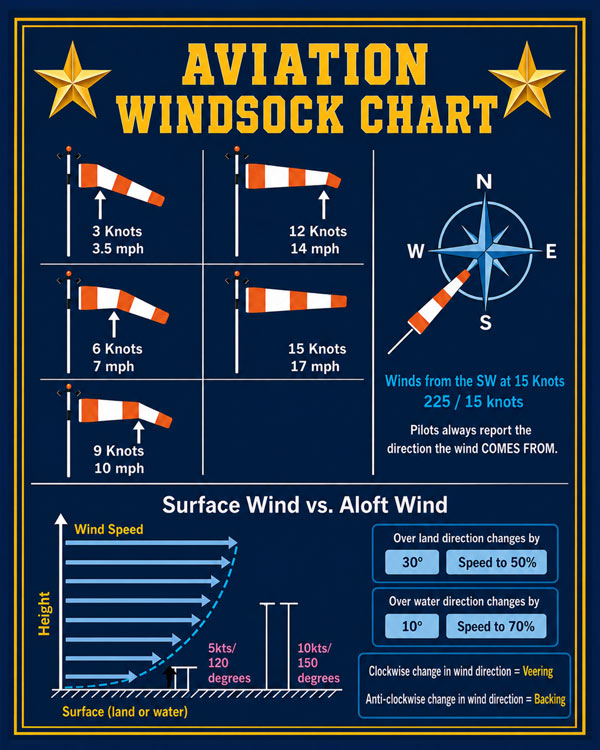

An aviation windsock is a cone-shaped fabric tube mounted on a pole to show pilots real-time wind direction and speed. The wide end points into the wind, while the angle relative to the pole indicates speed—a fully extended sock means speeds of 15 knots or higher.Â
Aviation Windsock Chart Blue vintage style military travel poster art by Squadron Posters!
A windsock (also known as wind cone or wind sleeve) is a tapered conical textile tube made with relatively lightweight material. When hung from a pole, it can be used as a basic indicator of wind speed and direction, or as decoration. Windsocks are typically used at airports to show the direction and strength of the wind to pilots, and at chemical plants where there is risk of gaseous leakage. They are also sometimes located alongside highways at windy locations. At many airports, windsocks are externally or internally lit at night. Wind direction is opposite the direction in which the windsock is pointing.[a] Wind speed is indicated by the windsock’s angle relative to the mounting pole –  in low winds it droops; in high winds, it flies horizontally.
Alternating stripes of high-visibility orange and white were initially used to help estimate wind speed, with each stripe extended adding 3 knots (5.6 km/h; 3.5 mph) to the estimated speed. Some circular frame mountings cause windsocks to be held open at one end and the first stripe extended, indicating a velocity of 3 knots even when stripes are not present. A fully extended windsock suggests a wind speed of 15 knots (28 km/h; 17 mph) or greater. Check out this stunning Aviation Windsock Chart Blue Art by Squadron Posters!
Squadron Posters offers the world’s largest collection of Squadron Specific Art! Check out our stunning vintage style military aviation themed travel posters, honoring All Branches of Service. Our artwork not only represents aircraft, armored cavalry, or ships, it represents adventure and travel. This means we create posters featuring the Space Needle, New Orleans, the Golden Gate Bridge, Mt Rushmore and the National Mall. Of course, McChord AFB isn’t in Seattle but if you’re stationed there your adventure surely involves the Space Needle! (See our Facebook page HERE)
This is what makes Squadron Posters different–it’s about remembering where you’ve lived and what you’ve seen with a vintage themed travel poster. – Collect your travels and tell your story!
